A heavy bead of low-expansion insulating foam can bow a jamb, bind a sash, or trap water at the sill when the unit isn’t locked in, and the foam crosses into the wrong zone. Use this guide to choose the right foam, lock geometry first, apply in controlled lifts, and place the bead where it seals air without blocking drainage.

Insulating foam belongs in the air-seal zone. Keep it out of the drainage features; the unit needs to stay open.

How insulating foam fits into a window and door installation

On most rough-opening window and door installs, you’re using insulating foam to air-seal and insulate the gap between the unit and the framing. It’s the air-seal step after you’ve set the unit and locked the geometry with shims and fasteners. However, when a system uses specialty or proprietary details, follow that install detail and don’t expect foam to do another system’s job.

Insulating foam is not designed to replace flashing or a drainage path, and it is not a firestop material. It is also not a straightening tool. Shims and fasteners hold the geometry you set, and foam follows that geometry. If it goes in too early or crosses into the wrong plane, it can lock in a problem.

Low-expansion foam helps reduce bowing risk, but it still needs control.

Choosing the right insulating foam by gap size, location, and callback risk

Once you keep foam in its lane, picking the right foam is mostly about gap size and risk.

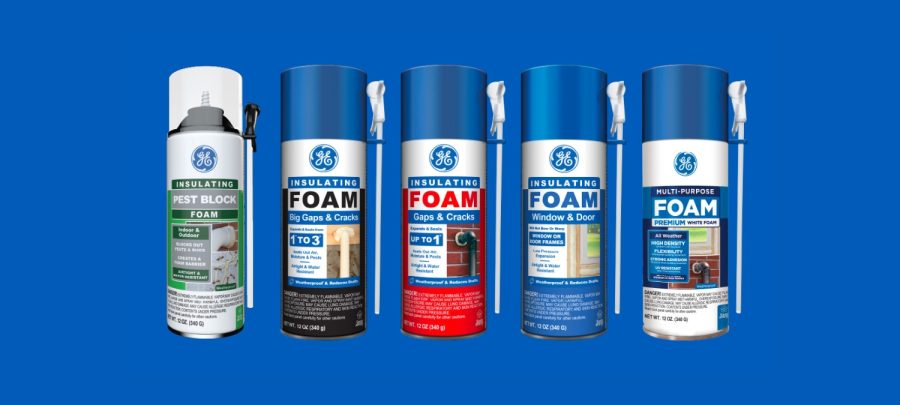

For typical rough-opening work, go with GE Window & Door Insulating Foam. Its low-pressure, low-expansion formula helps reduce bowing when sealing around operating units, where movement matters most.

For gaps up to 1 inch, use GE Gaps & Cracks Insulating Foam. When voids run larger than 1 inch, step up to Big Gaps & Cracks Insulating Foam and apply with restraint because larger cavities raise overfill risk.

When pest entry is a concern, use GE Pest Block Insulating Foam. For mixed substrates or general sealing work, GE Multipurpose Foam fits without over-specializing.

Prep and sequencing that prevent bowed frames and binding operation

Before you put any insulating foam in the gap, lock the unit in. Set it, shim it, get it plumb and square, then fasten it per the window or door manufacturer’s installation instructions before foam pressure ever enters the equation.

Cycle the window and work the door while the jambs are still adjustable. If it binds now, foam will make it harder to correct later.

Also, protect finished surfaces and flooring so overspray doesn’t turn into trim rework or punch-list delays. Apply foam to stable, clean surfaces. While a little moisture is fine, frosted or iced openings are not.

Application technique for low-expansion foam

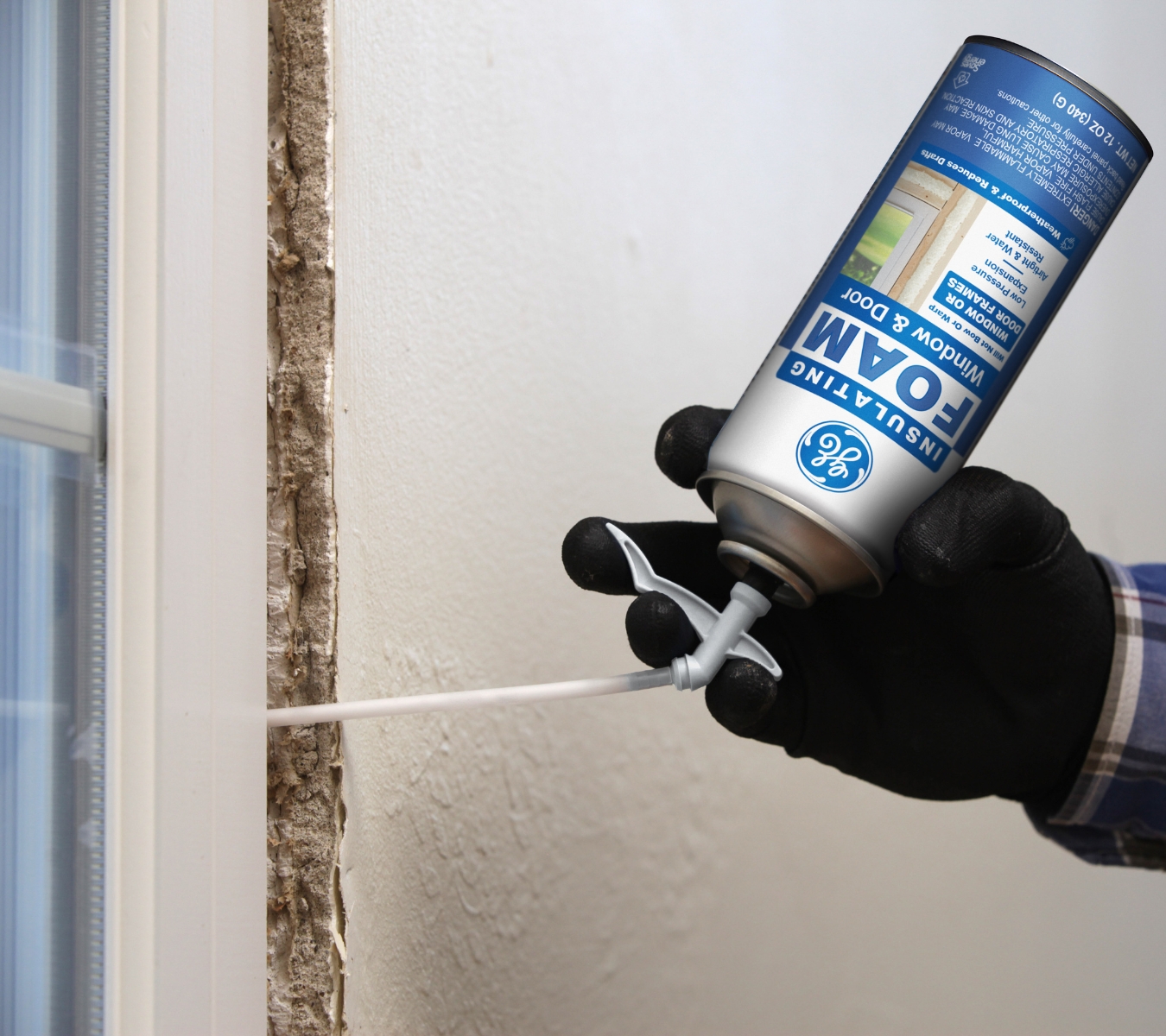

With a GE window-and-door rated low-expansion foam, get the applicator tip into the gap and lay a shallow bead as you back out. That gives the foam room to expand and helps limit squeeze-out. Fill the joint about halfway and let expansion do the rest.

Where operability is sensitive, build the bead in staged lifts. This means run a light first pass, let it set, then add depth with a second pass.

In deep or irregular voids, lay smaller strings in layers instead of dumping foam into one spot. Use a gun when you need repeatable metering across multiple openings. A straw works here, but it tends to be easier to over-dispense.

Before the insulating foam cures, think about cleanup. Follow the GE product label for uncured removal. Once cured, removal is mechanical.

Weather and cure control: cold cans, dry air, and schedule timing

Treat temperature as part of the application.

Keep the can and opening within the range listed on the product label or TDS. Cold conditions can slow dispense and cure, which can make the insulating foam harder to control.

In very dry conditions, cure can lag in thicker lifts. So, keep lifts thin, and use light misting between passes only if the label allows it.

For trim timing, this depends on tack-free and cut readiness.

Proper placement of insulating foam for windows without blocking drainage

When applying insulating foam for windows, treat the interior-side gap as the air-seal zone, and keep the exterior drainage path clear for:

• Jambs and head: Run a consistent, shallow bead on the interior side. Avoid bridging foam to the exterior plane.

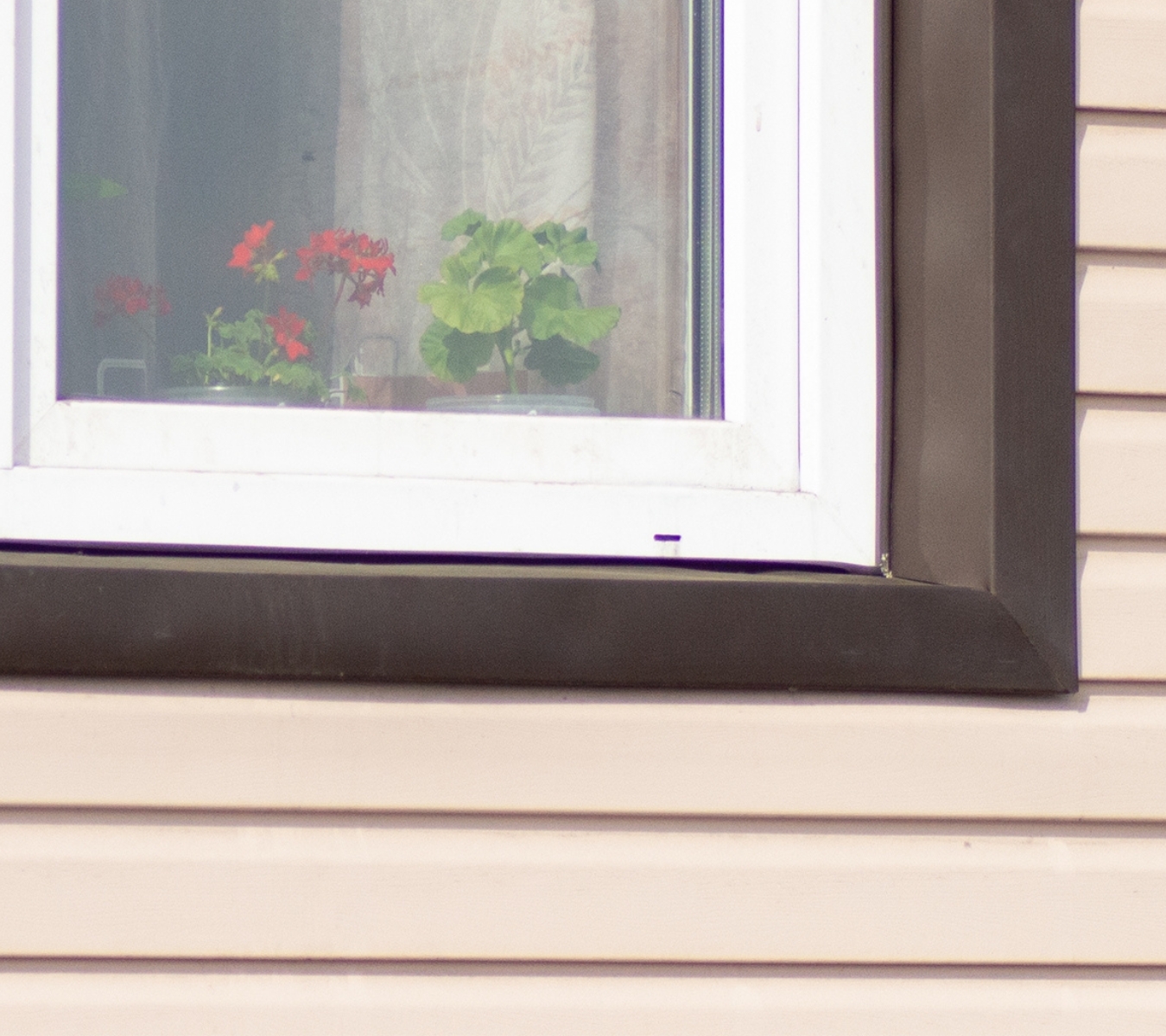

• Sill: This is the high-risk zone. Keep drainage routes and window weep holes open, and treat any designed track as a no-foam zone.

If the cavity is deep, use a backing approach so you’re not relying on one expanding mass of insulating foam.

Before you move on, check that the weeps are visible, no foam in the drainage plane, window unit still works.

Proper placement of insulating foam for doors

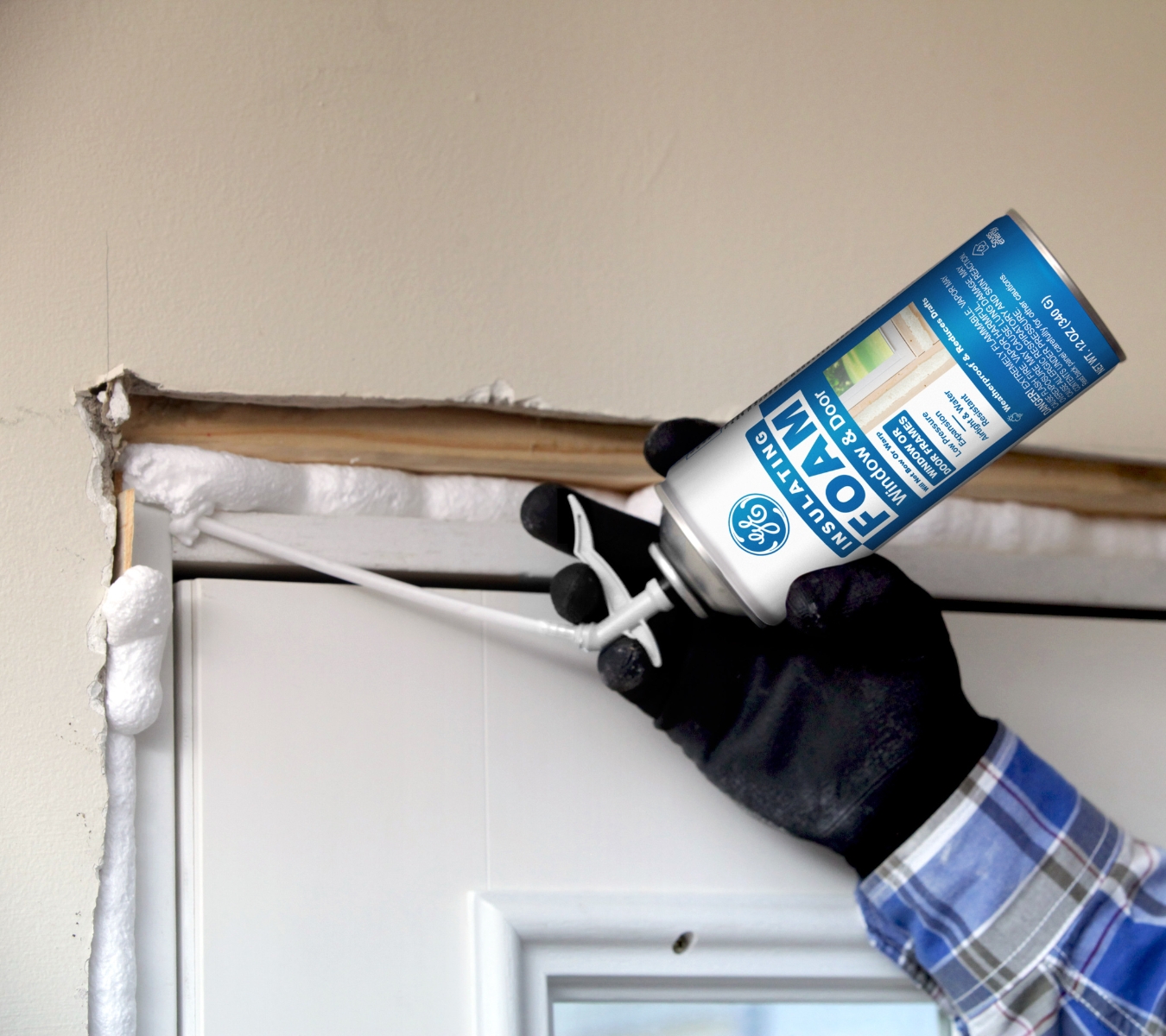

For insulating foam for doors, treat placement as a geometry protection step:

• Hinge side: Keep the bead minimal and staged, and confirm the swing before it fully cures.
• Strike side: Protect latch engagement. Don’t let foam pressure pull the jamb in.
• Header: Run a controlled bead so you don’t introduce a bow.
• Threshold or track: Leave intended movement gaps and any drainage routes clear. Don’t seal them shut with insulating foam.

Before you walk away, open, close, and lock the door. If it’s tight now, it’s a callback waiting to happen.

Troubleshooting common insulating foam failures

If you’re back on site fixing a foam callback, start with the symptom and reset the cause. Even with low-expansion foam, most problems trace back to sequencing, overfill, or blocking a drainage feature.

Window or door binds

• Likely cause: Foamed before geometry was locked, or overfilled at sensitive zones.
• Fix: Cut out cured foam, reset shims and fastening per the unit manufacturer’s installation instructions, then re-foam in staged lifts.

Bowed casing or reveal

• Likely cause: Pressure concentrated in one spot from over-dispense.
• Fix: Remove the foam, reset the casing or reveal plane, then reapply in staged passes.

Voids after cure

• Likely cause: Underfill, very dry substrate, bead too shallow.
• Fix: Add a second pass in thin lifts. Use light misting only where the label allows.

Uncured core or sticky center

• Likely cause: Lift too thick or conditions too cold.
• Fix: Remove it, reapply in layers, and keep the can and opening within the product label or TDS range.

Moisture at the sill or track

• Likely cause: The drainage path is compromised.
• Fix: Clear weeps and drain routes, then remove insulating foam from the drainage plane so foam stays on the air-seal side.

Conclusion

A foam job is only “done” when the unit still operates, and water has a way out. Before the trim goes back, cycle the unit and confirm it still operates cleanly. Trim only when the foam is ready to cut.

If the unit manufacturer’s installation instructions call for an exterior perimeter sealant bead, treat that as a separate step from interior insulating foam. Follow the manufacturer’s locations and exclusions so you do not seal across a drainage path.
